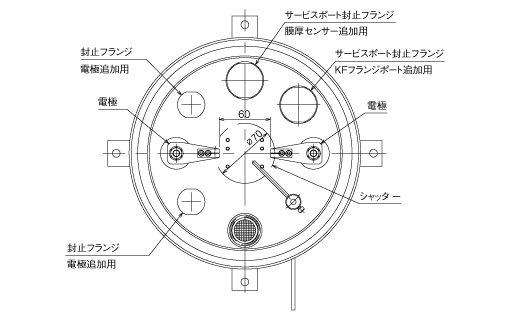

Model | VTR-060M/ERH |
Specification | Ultimate pressure | 10-4(No load cleaning in the vacuum layer) 1.5×10-3Pa(OptionSpecification) |
Evacuation time | 4.0×10-3Pa/20min(No load cleaning in the vacuum chumber) |
Vacuum chamber | Vacuum chamber | Cylindrical Glass belljar (Φ236mm×H250mm) |
Base plate | 7 ports (side ) |
Recommended substrate size (Maximum substrate size) | □50mm (□140mm) |
Power supply system | Evaporation electrode structure | 1 point |
Evaporation Electrode /power supply | SEREM “PSE-150C” 1 set 0~10V 80A (MAX) |
Exhaust system | Main pump | Turbo molecular pump(Air cooling) 60L/sec |
Sub pump | Oil rotary pump20L/min |
Oil mist trap | OMT-050A |
Operation system | Main valve | Option(Butterfly valve) |
Sub valve | Option(Three way valve) |
Automatic leak valve | Option(solenoid valve) |
Vent valve | Option(Leak port) |
Control | Manual control |
Control system | Gauge | Option (ISG1) |
Deposition Controller | Option (CRTM-6000G) |

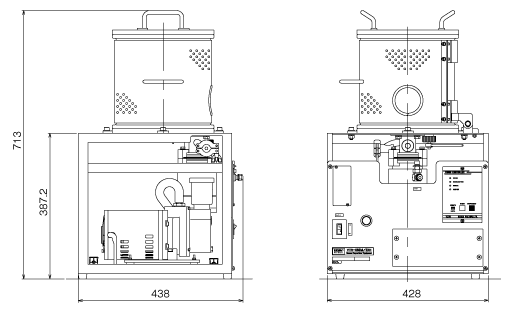

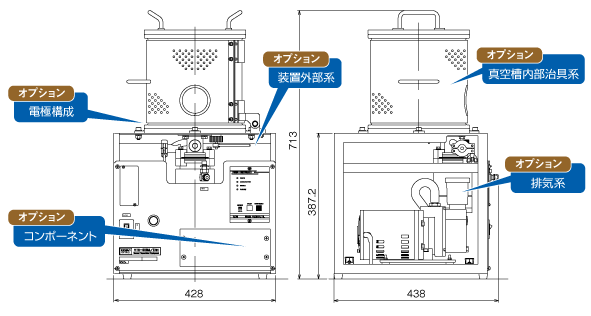

Setup | Extreial dimensions Body | 428mm(W)×438mm(D)×713mm(H) |

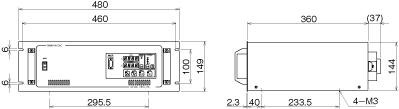

Power supply | 480mm(W)×435.3mm(D)×149mm(H) |
Weight Body | 50Kg |
Power supply | 24Kg |
