PVD series is a compact, double-stage rotary vane oil rotary vacuum pump coupled with belt-driven motor.
From the reliability and ease of use over the years, is a small belt-driven oil rotary vacuum pump has gotten used to a lot of customers.
From the low-speed rotation, it performs a quiet and stable exhaust characteristics.
Applications
Vacuum filling and gas exchange
Vacuum adsorption , transport and casting
Vacuum molding
Vacuum drying and freeze drying
Specifications
| Model | PVD180(B) *1 | PVD-360(B) *1 |
| Designed pumping speed | 50Hz | m3/h
L/min
cfm | 9 / 155 / 5.3 | 19 / 310 / 11.2 |
| 60Hz | 11 / 186 / 6.5 | 22 / 372 / 13 |
Ultimate
pressure *2 | GP Close | Pa/Torr/mbar | ≦ 0.67 / 5×10-3 / 6.7×10-3 |
| GP Open | ≦ 6.7 / 5×10-2 / 6.7×10-2 |
| Motor *3 | Type of motor | Totally enclosed fan cooled 3 phase induction motor |
| Energy efficiency class | IE1 *4 | IE3 |
| Power | kW (poles) | 0.4 (4) | 0.75 (4) |
| Voltage | 50Hz | V | 200 |
| 60Hz | 200 / 220 | 200 / 220 / 230 |
| Oil | ULVOIL R-72 |
| Oil capacity | L | 0.3 | 0.5 |
| Cooling method | Air cooled |
| Inlet port connection | φ28 x φ19 | φ34 x φ27 |
| Outlet port connection | G 3 / 4 | G 1 |
| External dimension WxDxH | mm | 265×470×321 | 303×488×321 |
| Weight ( pump + pump base ) | kg | 33.5 | 43 |
| Applicable standard | - |
| Standard accessory | A dose of oil,motor pulley 1set, V-belt 1set |
| Recommended oil mist trap (Optional) | TMX-1 + adapter flange |
| Option | TMX-1 oil mist trap, oil mist trap adapter, other oil types,
special type for special application |
Note)This specification uses SI measurement units. Conversion to non-SI units is as follows
6.7 Pa = 5 × 10-2 Torr
*1 PVD-180B and PVD-360B are versions of PVD-180 and PVD-360 with oil backflow prevention mechanisms.
*2 Measured with a Pirani gauge. ( Apprx. 6.7x10-2 Pa when measured with a McLeod vacuum gauge. )
*3 Please indicate the motor type, voltage and frequency requirement when ordering.
As an option, explosion proof types are available. PVD-B series which are with solenoid valves
are not able to select explosion-proof type.
*4 The energy efficiency regulation is not applicable for this motor.

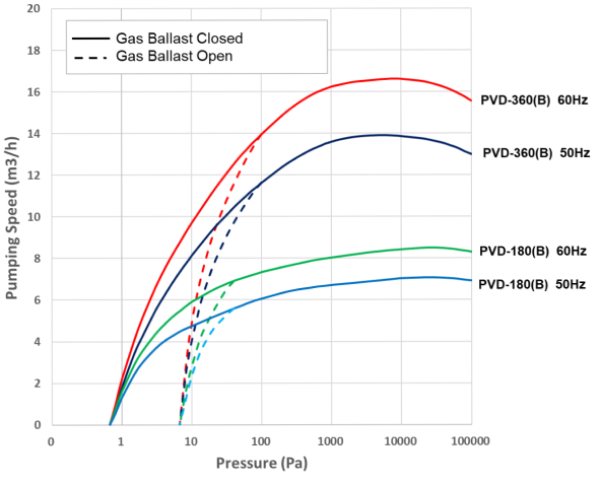

Pumping Speed Curves

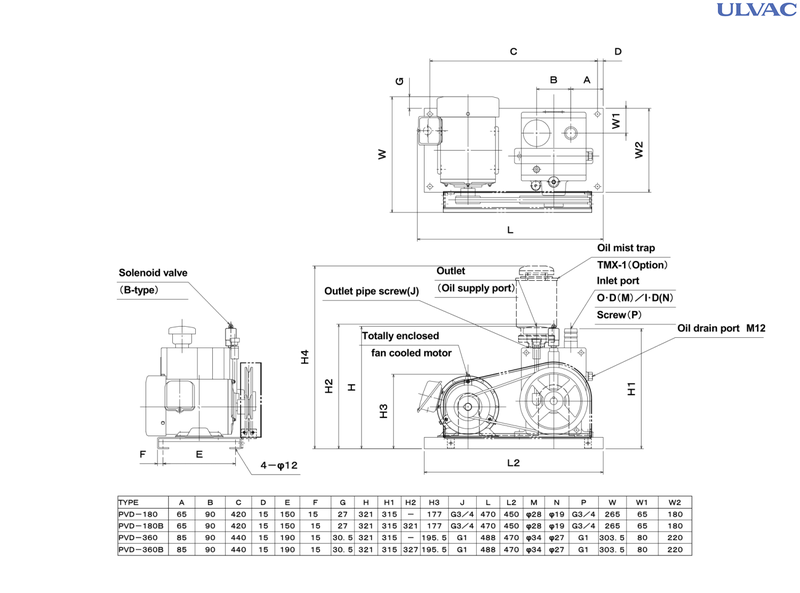

Dimension drawing
